SURGICAL LED LIGHTING

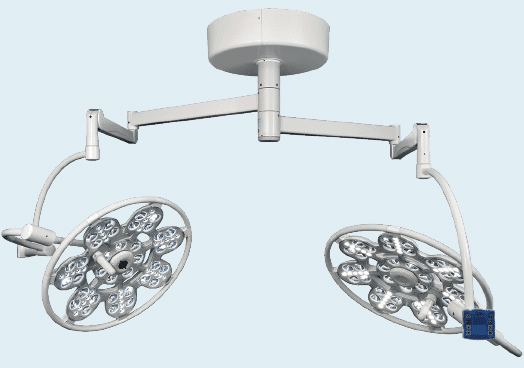

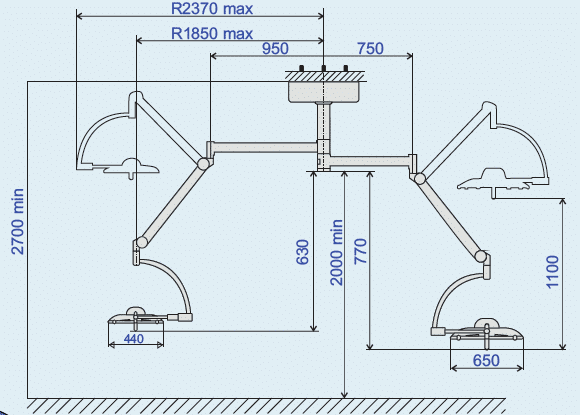

SURGICAL LIGHT EMALED® 560/300 or 560/300+ or EMALED® 500/300 or 500/300+

Two moveable and vertically adjustable spring arms make it possible to site the light heads in every desired position. The cardanic system (at both light heads) grants an even higher flexibility.

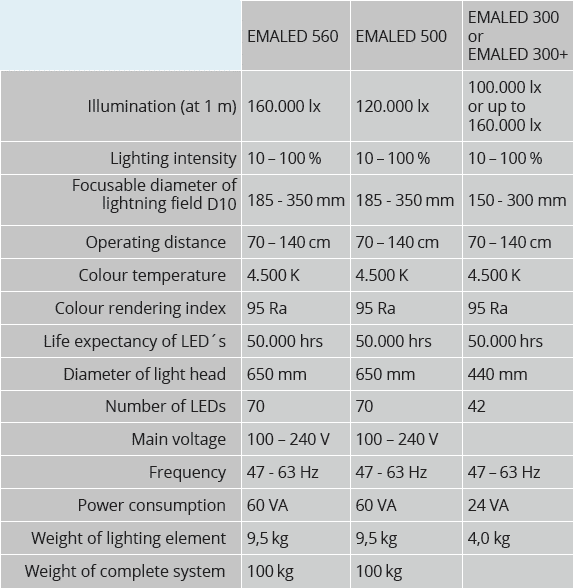

Technical Details

• Natural colour rendering grants a great light quality
• Shadow-free illumination
• Barely noticeable heating of the light head
• No movable parts in the light head
• Low maintenance requirements
• Adjustable illumination in 10 steps
• Powder coated aluminium case
• Two autoclavable handles are included (additional handles can be ordered any time)
• High fl exibility: 360° rotation horizontal
• 4-step focusing via the control panel with

LCD display
• Endoscopic mode
• Macro mode

Optional available:
• Remote control (also for double dome lights)
• Emergency power back-up (for up to 4hrs network independent use)
• Full HD camera
• Laser pointer
• Variable colour temperature: 3500 – 5000 K (5-steps)

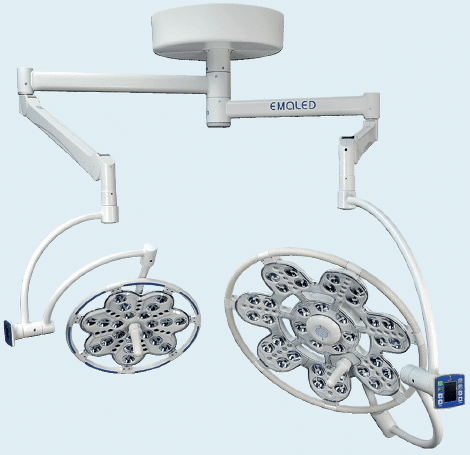

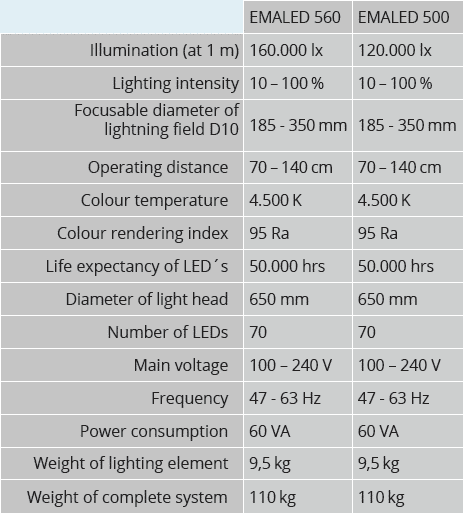

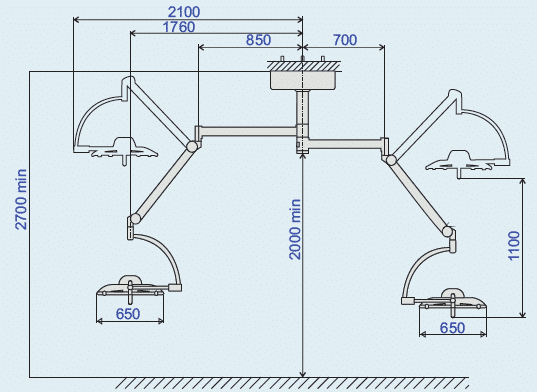

SURGICAL LIGHT EMALED® 560/560 or EMALED® 500/500 or EMALED® 560/500

This combination of light heads grants the highest possible illumination, the largest lightning field and is suitable for any kind of surgical intervention.

• Natural colour rendering grants a great light quality
• Shadow-free illumination
• Barely noticeable heating of the light head
• No movable parts in the light head
• Low maintenance requirements
• Adjustable illumination in 10 steps
• Powder coated aluminium case
• Two autoclavable handles are included (additional handles can be ordered any time)
• High flexibility: 360° rotation horizontal
• 4-step focusing via the control panel with LCD display
• Endoscopic mode
• Macro mode

Optional available:
• Remote control (also for double dome lights)
• Emergency power back-up (for up to 4hrs network independent use)
• Full HD camera
• Laser pointer
• Variable colour temperature: 3500 – 5000 K (5-steps)
