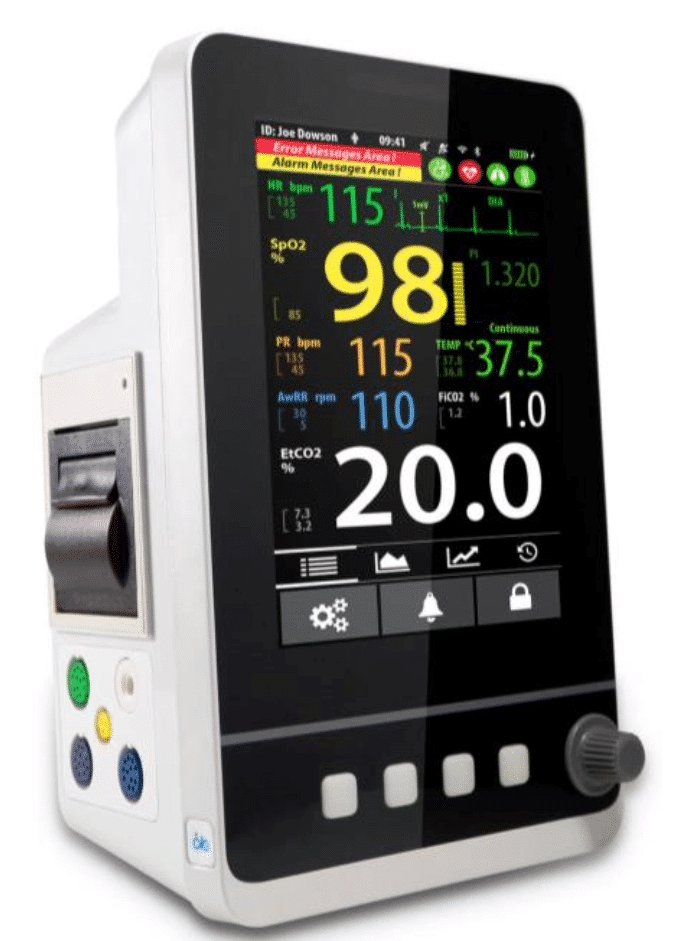

Floline VM800 Series Animal Monitor

The VM800 high-end Veterinary Specific Monitor is designed to meet the growing demand of animal healthcare. Enjoy the same high-end Modules as our W12 & W15, but in a smaller version with an 8” Touch Screen.

Dedicated veterinary algorithm
• LowPulseStrTM SPO2 algorithm more reliable readings of SPO2 during low perfusion and motion.
• iFastBP® NIBP algorithm used for fast and comfortable measurement.
• wSmartHeart® ECG technology for more safey monitoring of patient.
• wSmartGas® Capnograph technology to get reliable reading during multi-environment.

Powerful function
 Plug-in ETCO2 parameter available.
• 8” Touch Screen
• Wi-Fi connectivity more flexible application. (Optional)
• eTeleView Central Monitor system support. (Optional)
• Smart alarm system more safety and more efficient.
• Fanless design.

ETCO2 Plug & Play Modules (Optional)
• ETCO2 (Tinistream)
• ETCO2 (Mainstream)

Specifications

SPO2
• SPO2Range: 0~100%
• SPO2Accuracy: 70~100%, ±2%
• PIRange: 0~20%
• PVIRange: 0.001%
• PRRange: 25-350bpm
• PRAccuracy: ±3bpm

ECG
• ECGRange: 0.15~5.5mV
• ECGResolution: 2.36uV/LSB
• HRRange: 15~350bpm
• HRAccuracy: ±1bpmor±1%
• RRRange: 0~120bpm
• RRAccuracy: 15~120rpm: ±2rpm or ±2%

RESP
• Range: 0-120Rpm
• Accuracy: 15-120Rpm ±2Rpmor±2%
• Resolution: 1Rpm

TEMP
• Range: 0-50°C
• Accuracy: ±0.1°C
• Resolution: 0.1°C

NIBP
• Pressure Range: 0~300mmHg
• Pressure Accuracy: ±2mmHg or±1%of reading (take the larger value)
• Resolution: 1mmHg

• SYS Range:
• Large animal:40-270mmHg
• Medium animal: 40-235mmHg
• Small animal: 25-130mmHg

• DIA Range:
• Large animal: 10-210mmHg
• Medium animal: 10-180mmHg
• Small animal: 10-90mmHg

• Mean Range:
• Large animal: 20-230mmHg
• Medium animal: 20-200mmHg
• Small animal: 15-100mmHg

• Accuracy:The mean deviation<±5mmHg
• The standard deviation<8mmHg
• Supplied with 5 x Premium Reusable Cuffs
